Packaging plays a vital role in protecting products as they move through shipping, handling, and storage. This is particularly important for heavy, fragile, and irregularly shaped products, as their packaging must not only contain them but also absorb shock and maintain their structure under stress.
For every business, choosing the right packaging for shipping odd-shaped and oversized items can mean the difference between safe delivery and damaged products.
The Limitations of Standard Double-Wall Corrugated (The Break-Even Point)
Standard double-wall corrugated boards (often called BC flute) are usually used for packaging products that weigh 40-50 lbs., but when it comes to heavier, fragile, or odd-shaped boxes, they are inefficient.
You will most likely experience:
- Protrusion Risk: Irregularly-shaped items with sharp corners, uneven surfaces, or exposed edges create concentrated pressure points inside the box. When under intense stress, the pressure points can cause a tear or puncture in the packaging. This exposes the product and compromises its protection.
- Dynamic Shock: Packages are not always handled gently. They go through sudden drops, conveyor impacts, and constant vibration during shipping. In these conditions, the standard double-wall corrugated board may exceed its burst strength, causing the product to bulge out or a complete structural disaster.
- Stacking Failure: Corrugated boxes (including odd-shaped cardboard boxes) rely heavily on their corners for vertical support. When used in the warehouse for heavy products or items with unbalanced loads, the corners of the boxes can crush. Once this happens, the entire stack becomes unstable, thereby increasing the risk of damage to other products.

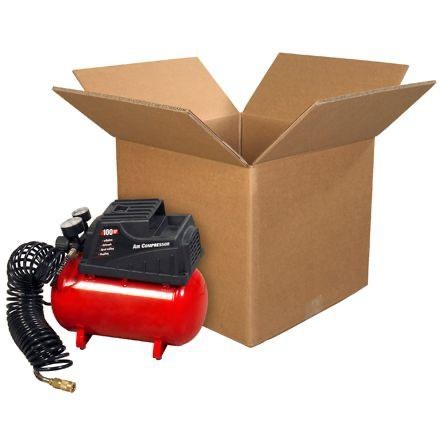

Triple-Wall Corrugated: The Ultimate Heavy-Duty Solution
When standard double-wall corrugated boxes cannot provide enough protection for products, triple-wall corrugated packaging is the next viable solution. It’s the strongest form of corrugated boxes used in shipping, and it’s specially designed for heavy-duty items, fragile products, and odd-shaped packaging.
Triple-wall corrugated board is constructed with three layers of fluting and four linerboards, which makes it extremely rigid and resistant to impact. This design improves stacking and load-bearing strength, as well as the capability to withstand puncture.

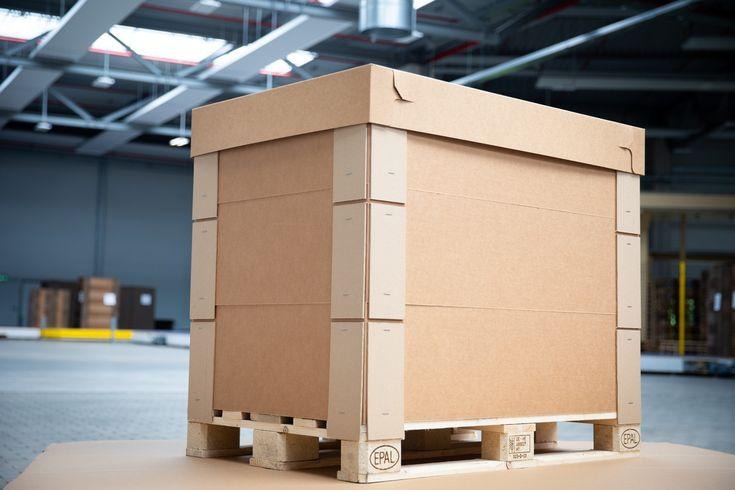

Built-in Strength: Replacing Wood Crates
One of the biggest supplementary advantages of triple-wall corrugated packaging is its ability to replace traditional wooden crates. While wood has long been the go-to option for heavy or odd-shaped products, it has challenges like higher cost, slower assembly, increased dimensional weight, and disposal difficulty. Triple-wall packaging, on the other hand, can safely handle products weighing 450 lbs. or more.
From a logistics angle, triple-wall boxes reduce handling time, erase the need for nails or fasteners, and simplify material handling with forklifts. For exporters, this advanced packaging style helps to avoid issues related to wood treatment regulations.
Understanding Flute Combination
The strength of the triple-wall corrugated board is not just about having more layers; it’s about using the right flute combinations. In the packaging manufacturing process, the right flute profiles must be selected, such as A/A/C flute or B/C/C flute.
Larger flutes like A-flute provide excellent cushioning and shock absorption, which is essential for fragile items or odd-shaped gift boxes. Meanwhile, B-flute and C-flute corrugated boards are known for their crush resistance and compression strength, which ensures the packaging maintains its shape under heavy stacking loads.
By combining these flutes strategically, the triple-wall box becomes a true industrial-grade solution and delivers better protection for products.
High-Performance Specialty Board Grades
While the triple-wall corrugated boxes play a major role in packaging strength, high-performance specialty board grades are designed to offer superior strength-to-weight ratios, enhanced durability, and better protection for non-uniform and high-value products.
There are two major high-performance specialty boards. They are: Kraft and Performance Liners.
Kraft vs. Performance Liners

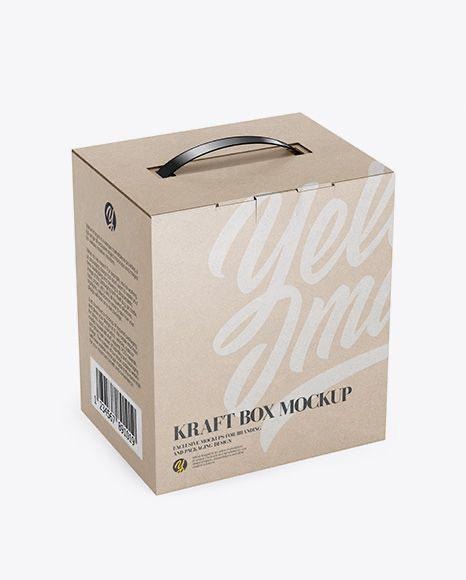

- Standard Kraft: It’s made from recycled or blended pulp. The standard kraft packaging is most ideal for light or moderate loads.
- Performance Liners (e.g., High-Performance Kraft): It’s made of virgin fiber or specially engineered linerboards, which significantly increases the Edge Crush Test (ECT) score without needing thicker fluting. This makes it possible to produce a light weird shaped box that still offers excellent stacking strength.
Moisture and Environmental Protection
Environmental exposure is another major threat to packaging, and this is quite common with corrugated boards—particularly for irregularly-shaped items stored outdoors or in humid warehouses. Fortunately, high-performance specialty board coatings can be used to make sure the packaging maintains its integrity.
- Wax Coatings: Provides basic water resistance, which prevents odd-shaped boxes from collapsing when wet. The coatings guarantee that the liner and structure of the packaging remain intact.
- Vapor Corrosion Inhibitor (VCI) Boards: For metal components like machinery parts and automotive components, VCI boards offer a higher level of protection. They have liners that emit chemical compounds, which prevent rust and eliminate the need for separate internal rust-proofing materials.
Engineering Solutions for Odd-Shaped Structural Integrity
When shipping odd-shaped items, the box is only as strong as its weakest point. Specialty structural engineering is necessary to prevent uneven weight distribution or empty spaces inside the box. To achieve this, utilize customized die-cut inserts, end caps, and efficient internal reinforcement.

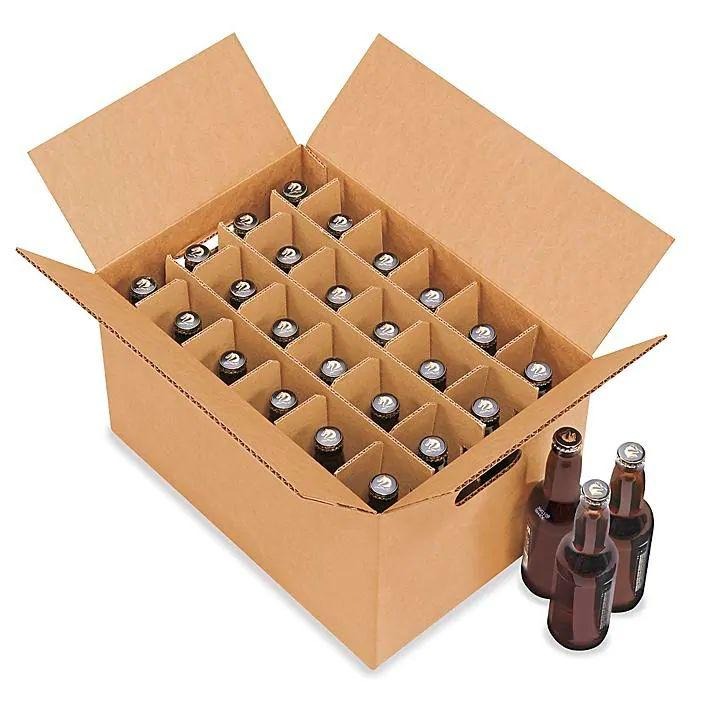

Customized Die-Cut Inserts and End Caps
One of the biggest problems with odd-shaped and oversized packaging is the void space and concentrated stress points. This is caused because the product does not fit snugly, resulting in void spaces that allows movement inside the box. Forcing the product in can cause concentrated stress points, which weakens the carton over time and may lead to protruding components.
The most effective solution is to use customized die-cut inserts and end caps that are made from triple-wall or thick double-wall corrugated boards. These inserts and end caps are used to “block and brace” the product in place. They lock the product into a more uniform shape that ensures external forces (whether drops, vibrations, or compression) are transferred to the corners and edges—which are the strongest part of the box.
Internal Reinforcement
In addition to inserts and end caps, thick corrugated tubes and rolls can be used as internal reinforcement to prevent the top of the box from damaging the product. This includes using multi-layer pads. They increase compression strength, ensuring that boxes don’t collapse on products during stacking.
Partnering with a Specialty Manufacturer: Why Expertise Matters
Triple-wall corrugated boards and high-performance specialty board grades are the best for making durable and efficient packaging. But it requires expertise in material science and structural design, which can only be offered by a seasoned printed box packaging manufacturer.
The manufacturer can develop triple-wall boxes and high-performance specialty board grades with custom inserts to fully protect your products. This approach helps to save time by reducing trial-and-error testing, ensuring every component works together to deliver maximum strength.
Another reason why you need a professional is the cost analysis, especially when you need an odd-shaped packaging that can replace crates. As mentioned earlier, crates add excess weight to your product packaging, which increases your shipping cost. A professional packaging manufacturer would seamlessly evaluate the total cost of manufacturing better packaging. In many cases, triple-wall and special board grades offer significant savings by reducing weight, lowering shipping costs, and speeding up assembly—all without compromising on product protection.
Key Takeaway
When you want to package heavy, fragile, or irregularly-shaped goods, triple-wall corrugated or high-performance specialty board grade packaging are the best. To get started, contact us and let’s talk about your odd-shaped packaging needs.
